Various tubing
|
|
|
TEFLON Corrugated flexible hose is the on passed through Corrugating
process on TEFLON hose. As a tube molded on a spiral plate, it can
be bent and cut. Its radius of curvature is twice internal diameter
and it is mainly used for connection piping. it is used for piping
in the place with vibration ; Experimental equipment in an institute,
tank glass hose, tank rolley, fuel piping, other piping for fluide
supply. |
Materials
- Granular resin PTEE according to Astm D-4894
- O-Ring
- verzinkt / zinc plated, CrNiti
- Schraube and Mutter / bolt and nut
|
It absorbs movement/vibration transferred to a hose or related
device for relief
BELLOWS :
- Flexibility range toward shaft :
25%
- There is model which can be used in vacuum condition.

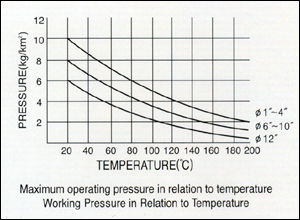

- Working pressure varies with the diameter and working temperature.
Thus, proper type can be selected according to a different working
condition.
|
 |

INCH
|
SIZE
|
SUS BRAID
O.D
|
LENTH(M)
|
O.D
|
I.D
|
1/8"
|
5.0
|
3.0
|
6.50
|
150
|
3/16"
|
7.0
|
5.0
|
8.50
|
150
|
1/4"
|
8.5
|
6.5
|
10.0
|
100
|
5/16"
|
10.0
|
8.0
|
11.5
|
100
|
3/8"
|
11.5
|
9.5
|
13.0
|
80
|
12/32"
|
12.5
|
10.5
|
14.0
|
50
|
1/2"
|
15.9
|
13.0
|
16.5
|
50
|
5/8"
|
18.5
|
16.0
|
20.0
|
30
|
3/4"
|
21.5
|
19.0
|
23.0
|
25
|
7/8"
|
25.0
|
22.0
|
26.5
|
25
|
1"
|
27.5
|
25.0
|
29.0
|
20
|
|
FEATURES OF PRESSURE HOSE
- Radius of curvature : it is never broken or cut even
at the least radius of curvature due to its unique and special
structure.
- Strength : Hose protected by its special structure which
can withstand the load of 200kg on the hose.
- Durrability : Excellent durability due to its strong
anticorrosion and continous bending and vibration resistance for
a long time.
- Pulity : it keeps and excellent inside cleanness and
is easy to use in an emergency due to its clean interior.
- Excellent Heat Resistance : Continues use in the range
of 170
~ 230
- Pressure Resistance : It can withstand the breaking pressure
of 200

APPLICATION
- For Steam : Recorder semi-molded press hose, diarubber,
steam hose for cleaning.
- For Chemicals : Filling and feeding various fluids and
hot supply of paint.
- For Hydraulic System : Hydraulic system of ester phos-phate
and other high-pressure system.
- For Gas Piping : Hose for low/high temperaures gas and
gas charging. A line from a tank truck.
- For Food : Hose against contamination for juice, whisky,
chocolate, milk, etc.
- For Vibration absorption : Compressor hose.
|
 |
 |
DESCRIPTION
As a hose featuring the heat resistance of TEFLON, it is applied
to steam lines of a washing machine. Especially there is a remarkable
effect in protecting a worker in existing SUS braiding in a case
of goods braided with cloth.
|
|
|
 |
|
